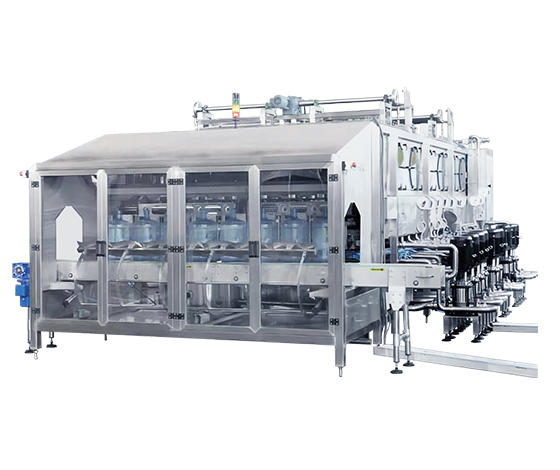

5 Gallon Bareel Filling Machine
This series is suitable for 3-5 gallon containers for filling purified water and mineral water. It integrates barrel washing, filling, and capping into one unit. The production line can automatically perform cap removal, rinsing, sterilization, filling, capping, counting, and product discharge. It is fully functional and highly automated. It is a new type of automatic bottled water production line integrating mechanical, electrical, and pneumatic technologies.
PRODUCTDETAILS
PARAMETERS
| Model | QGF-10 | QGF-240 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-1500 | QGF-2000 |
|---|---|---|---|---|---|---|---|---|---|
| Number of filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 | 15 | 18 |
| Production Capacity(bph) | 60-100 | 100-240 | 250-300 | 400-450 | 450-600 | 600-900 | 900-1200 | 1200-1500 | 1500-2000 |
| Total power(KW) | 2 | 3.5 | 3.5 | 5.5 | 5.5 | 6.5 | 9 | 9.5 | 11.5 |
| Weight(KG) | 700 | 1000 | 1500 | 2200 | 2700 | 3500 | 4500 | 5000 | 6000 |
